功能  Application  >>>

圓盤定量澆鑄機組是通過定量澆鑄、 噴淋冷卻、提取?冷等裝置?產出后續電解精煉?藝所需的合格陽極

The casting wheel machine has the functions such as constant casting, spray cooling and anode cooling to produce qualified anode plate required by the subsequent electrolytic refining process

主要參數及組成   Main Parameters and Components   >>>

最?能?Maximum capacity： ≥150t/h 澆鑄精度：98.5%陽極板重量精度±2kg

Weight accuracy of casting: 98.5% of anode plates within tolerance of ± 2kg

陽極板合格率 Qualified rate of anode: 99%

圓盤定量澆鑄機組主要由： ?動定量澆鑄系統、 澆鑄圓盤、 陽極提取和傳送系統、 廢陽極提取裝置、 陽極模噴涂 系統、 噴淋冷卻系統、?動系統、 液壓系統及電控系統等組成

The casting wheel machine consists of automatic constant casting system, casting wheel, anode collecting and transmitting system, reject anode take-off device, mould dressing system, anode and mould spray cooling

system, pneumatic system, hydraulic system and electrical control system, etc.

技術優勢和專利   Advantagesand Patents    >>>

1、技術優勢 Advantages

1)采?流量控制的移動澆鑄技術 ，定量精度? ，澆鑄質量? ，抗?擾能?強

The mobile casting technology with flow control is adopted, with the same solution volume in the mold, high casting quality and strong resistance to external influence

2)采?變扭矩傳動機構和扭矩?適應調節技術（中?驅動） ，帶阻尼驅動技術（周邊驅動） ，圓盤運?快速穩定 With variable-torque drive mechanism, self-adaptive torque control technology (central driving), and damped      driving technology (surrounded driving), the casting wheel runs fast and stably

3)設置頂桿定點噴涂， 噴涂適應性好

Set swing and push-up rod spray coating which has good adaptability

4)設置模溫檢測及?動控制功能

Set swing and top rod spray coating which has good adaptability

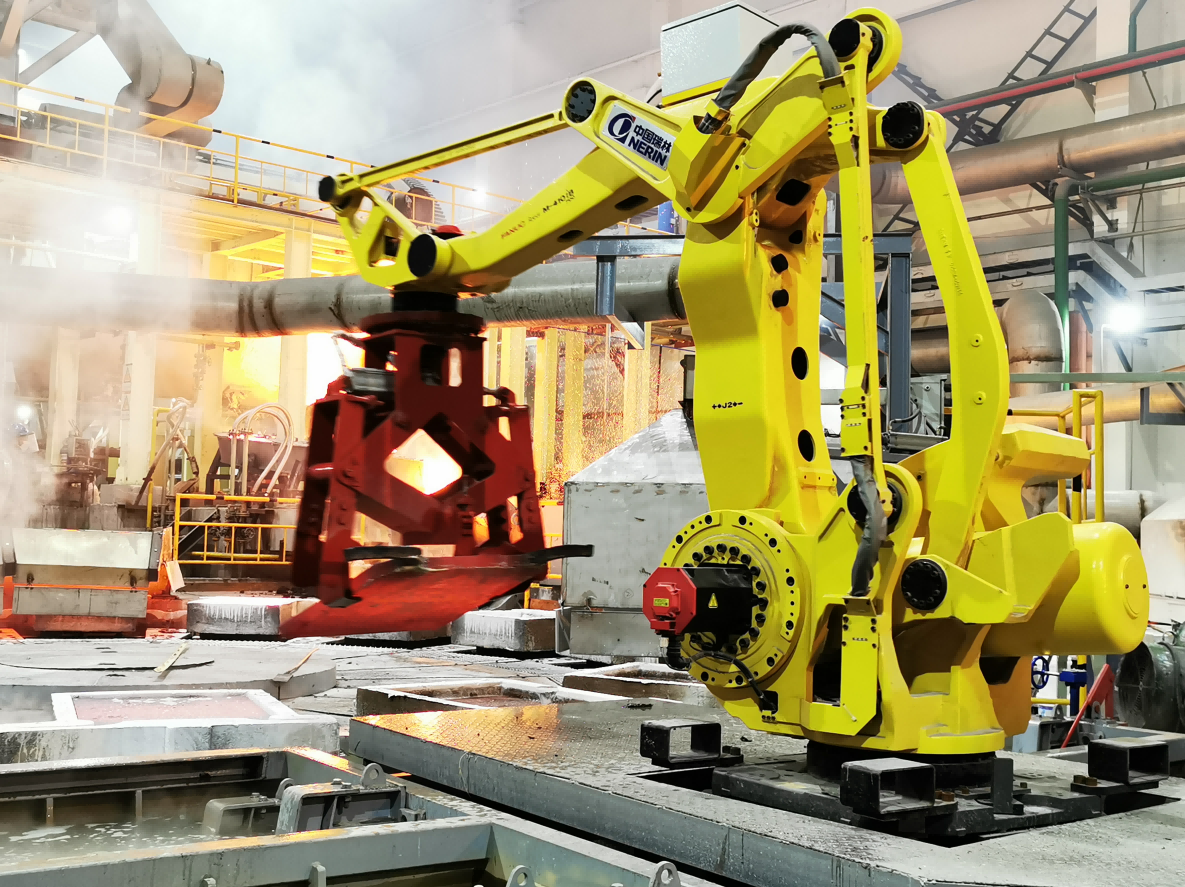

5)采?機器?取板，全程陽極板?部不受?， ?部變形?

Use the robot to take-off the plate, the lug of anode plate is not stressed and the lug deformation is small

6)配置多?位均冷技術， 陽極板冷卻均勻、板變形少、霧汽少、環境好

Equipped with uniform cooling at multiple stations, the anode plate is cooled uniformly with less deformation and fewer vapors, so the working environment is better

7)采?陽極板板?主動式?流沖刷技術，減少板?硫酸鋇及氧化?的附著量

Adopt active flushing technology to wash the surface of anode plate to reduce the adhesive slag quantity of barium sulfate and oxide skin on the surface

2、專利3項 3 Patents 其中發明專利1項

Among them, 1 invention patent
