功能 Application  >>>

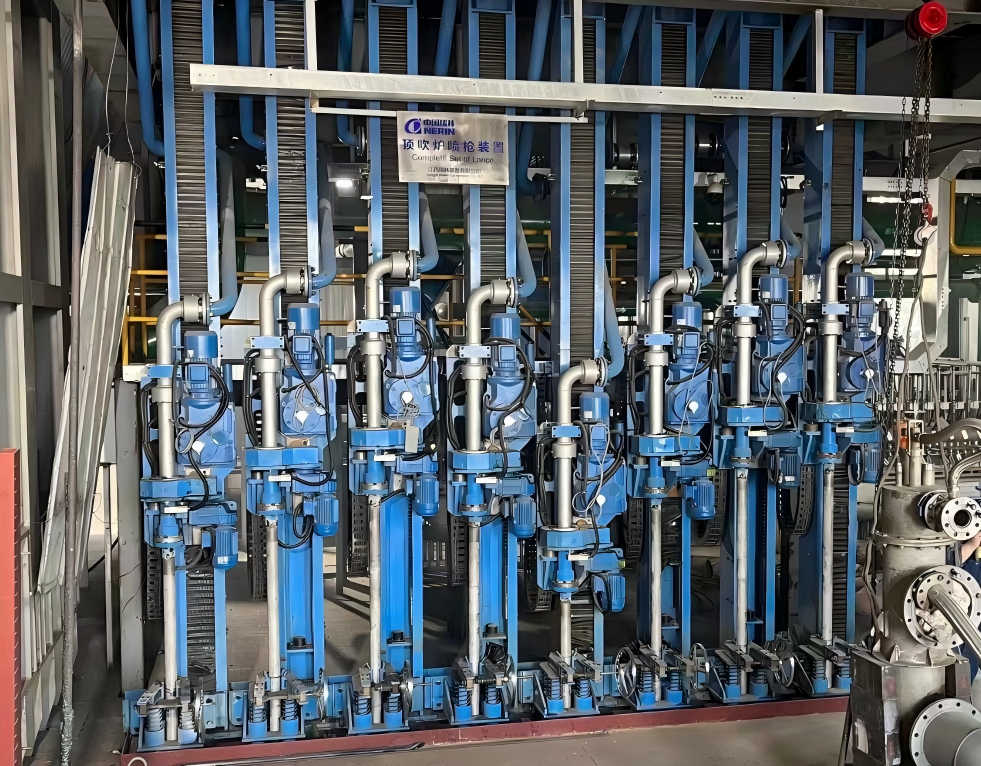

噴槍成套裝置為富氧側吹熔煉及連續吹煉技術的核心設備之一，其作用是向多噴槍頂吹爐內輸送富氧空氣，使富氧空氣與冰銅中雜質發生氧化反應以脫除雜質，同時攪拌熔池。

The complete set of lance is one of the core equipment of oxygen-rich side blowing smelting and continuousblowing technology.Its function is to transport oxygen-rich air into the top blowing furnace with multiple lances,causing oxidation reaction between oxygen-rich air and impurities in the matte to remove impurities,while stirringthe molten pool.

主要參數及組成  Main Parameters and Components   >>>

主要參數Main parameters:

噴槍升降速度：2.65m/min,可調；

lance lifting speed:2.65m/min,adjustable;

噴吹管旋轉速度：7.5rpm,可調；

Rotating speed of the blowing pipe:7.5rpm,adjustable;

主要組成：軌道支架、噴槍小車、折疊管、夾緊裝置

Main components:track supportlance trolley,folding tube,clamping device

技術優勢與專利  Advantages and Patents    >>>

1、技術優勢Advantages

1)噴槍從爐頂豎直插入爐內，各噴槍之間均可單獨動作，換槍時可單獨將進行升起更換，保證頂吹爐連續作業；The lance is vertically inserted into the furnace from the top,and each lance can be operated independently.Whenchanging the lance,it can be lifted and replaced individually to ensure continuous operation of the top blowingfurnace;

2)噴吹管為非浸沒式，噴吹管底端距離液面約200~250mm,高度保持穩定。

The blowing pipe is non immersedwith the bottom of the blowing pipe approximately 200~250mm away from theliquid level,and the height remains stable.

3)自動化程度高，可根據生產情況實現自動提升、下降及其他連鎖動作；

Highly automated,capable of automatic lifting,lowering,and other interlocking actions according to productionconditions;

4)快速換槍的功能，減輕操作難度，提高作業效率；

The function of quick lance changing reduces operational dificulty and improves work efficiency;
