功能 Application  >>>

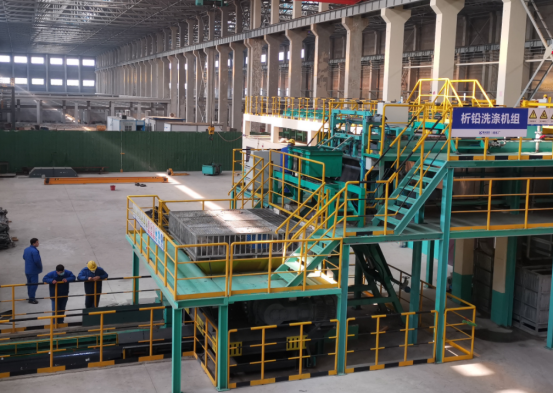

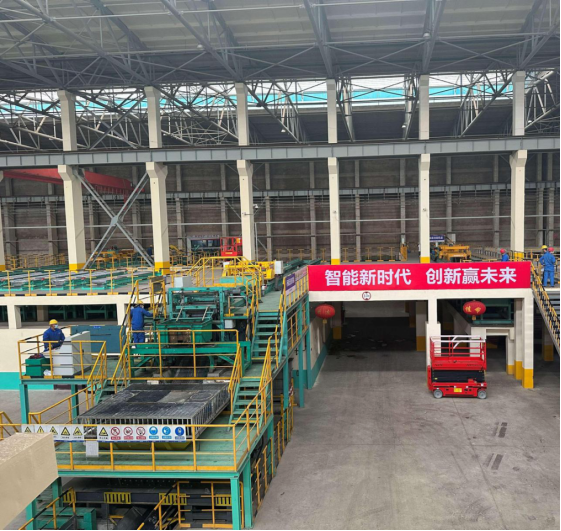

析出鉛洗滌抽棒機組是析出鉛板出槽后處理的專用設備，具備受板、轉運、洗滌、風干、棒-板分割、輸出、撕碎等功能 The cathode lead washing machine is the specialized equipment for the post-process of cathode lead plate after

being discharged from the cell. It has functions such as receiving plate, transfer, washing, air drying, rod and plate separation, output and shredding

主要參數及組成  Main Parameters and Components   >>>

最?能?Maximum capacity： ≤11s/#piece

析出鉛洗滌抽棒機組主要由：洗滌鏈運機、洗滌水循環系統、轉運小車、棒板分割裝置、導電棒輸出裝置、析出鉛板轉運 裝置、 氣動系統

The cathode lead washing machine consists of washing chain conveyor, washing water circulation system, transfer  trolley, conductive rod and plate separation device, conductive rod output device, cathode lead plate transfer device and pneumatic system

技術優勢與專利  Advantages and Patents    >>>

1、技術優勢 Advantages

1)采用割刀進行棒-板分離，提高了導電棒與析出鉛板分離的效果， 同時也降低了對導電棒的磨損和變形影響，減少了電 解車間的生產成本

The use of cutter for conductive rod and plate separation improves the efficiency between conductive rod and

cathode lead plate as well as reducing the impact of wear and deformation on the conductive rod and decreasing the production cost of tank house

2)采用轉運小車進行跨間析出鉛板輸送， 降低了鏈條輸送的負荷， 節省了維修成本，提高了轉運的效率

The use of trolley for the transfer of cathode lead plate among spans reduces the load of chain convey, saves the maintenance cost and improves the efficiency of transfer

3)采用單片撕碎的析出鉛板處理方案，設備結構簡單，熔鑄效率高且能耗低

The single piece shredding is adopted for cathode lead plate. The equipment structure is simple, the casting efficiency is high and the energy consumption is low

4)設備整體布置在同一樓層 ，輔助操作平臺少，操作視野好，投資小

The overall layout of equipment is on the same floor, with fewer auxiliary operation platforms, good operational vision and low investment

2、專利1項 1 Patents

其中發明專利1項，專利申請?zhí)枺?/span> CN202221137319.5

Among them, 1 invention patents, patent application No.: CN202221137319.5
