功能  Application  >>>

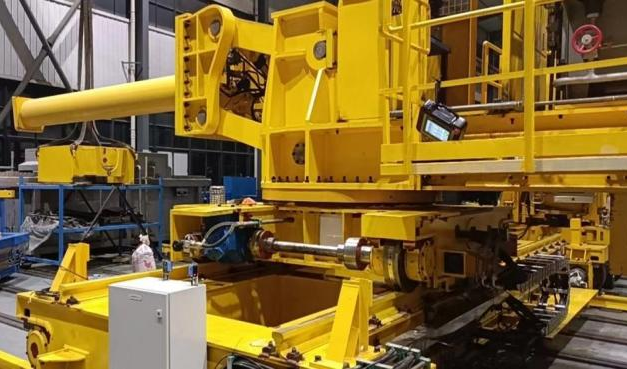

自動加料機組用于冶煉爐的加料作業，具備滿載料箱的輸入、升降、空料箱的轉運輸出以及加料過程的原料料箱獲取、轉移、爐內布料、倒料、退回等功能。

The automatic feeding machine is used for the feeding operation of smelting furnaces,with functions of input,lifting,transfer and output of the fully loaded material box,transfer of the empty material box,acquisition andtransfer ofthe raw material box during the feeding process,distribution in the furnace,pouring,and returning.

主要參數及組成   Main Parameters and Components >>>

主要參數：Main parameters:

加料能力：100t/h

Feeding capacity:100t/h

加料速度：90s/箱

Feeding speed:90s/box

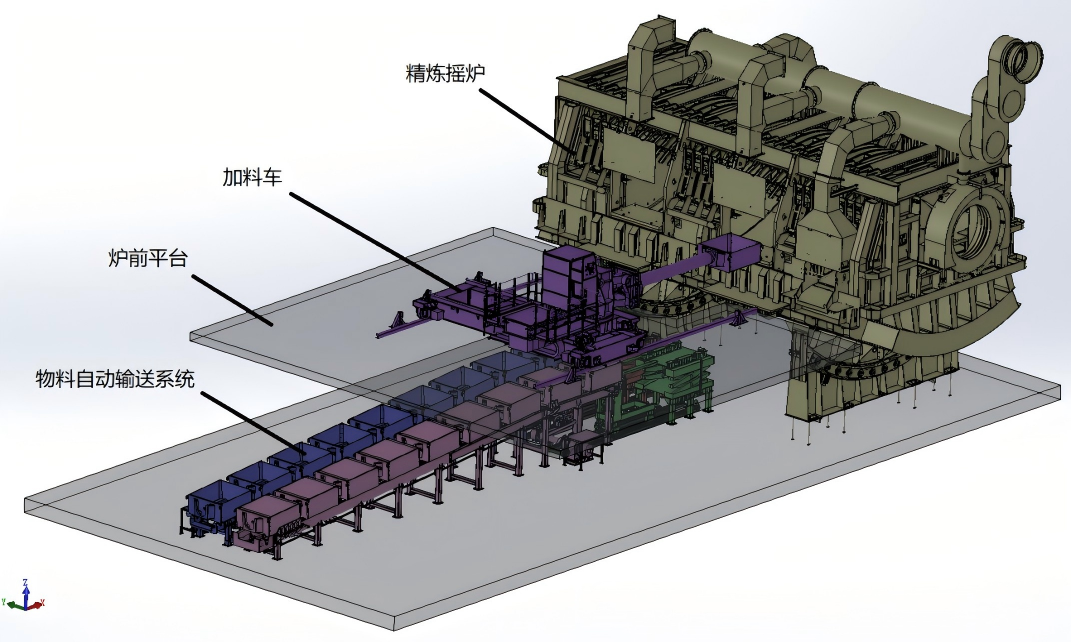

主要組成：輸入鏈運機、輸出鏈運機、轉運小車、升降臺、自動加料機、控制系統

Main componens:input chain conveyor,output chain conveyor,transfer trolley,lifting station,automatic feedingmachine,control system

技術優勢   Advantages  >>>

1、技術優勢Advantages

1)自動化程度高：各工序銜接緊密，加料過程連續不中斷，保證了搖爐作業工藝的穩定；High degree of automation:Each process is closely connected,and the feeding process is continuous anduninterrupted,ensuring the stability of the tilting furnace operation process;

2)安全性高：在臨時停電時，蓄能系統可保障加料機返回安全位置；

High safety:In the event of an emergency power failure,the energy storage system can ensure that the feedingmachine returns to a safe position;

3)對物料的適應性強：采用料箱加料，對原料的物理規格要求不高，可為散料、塊狀料；

Strong adaptability to materials:using material boxes for feeding,with low requirements for the physicalspecifications of the raw materials,which can be loose or block materials;

4)熔化效率高：通過加料機旋轉臺小角度擺動即可做到爐內扇形布料，有效防止了原料的堆積，提高了熔化速度。

High melting efficiency:By swinging the feeding machine's rotating table at a small angle,a fan-shaped materialdistribution can be achieved in the furnace,effectively preventing the accumulation of raw materials and improvingthe melting speed.
