功能 Application  >>>

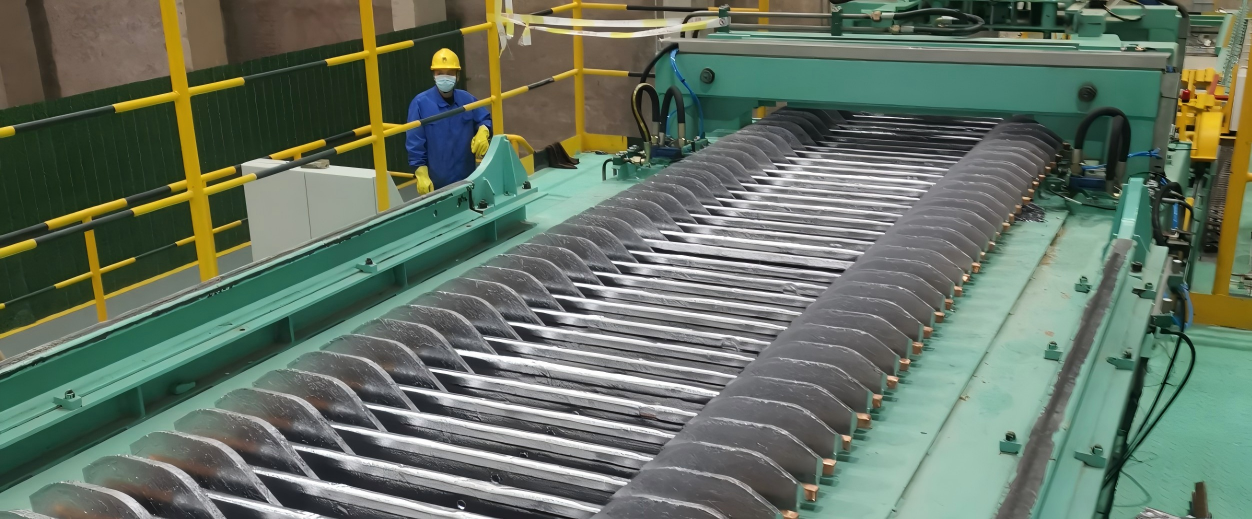

整槽陽極板到達受板工位后，經過轉運移載，輸送、斜提升，耳部矯正、對中等工序，在排板鏈運機與機器人轉移來的陰極等距交替排列，最后由轉運小車整體移載至排列梳吊裝工位，等待專用吊具吊取。

After the entire cell of anode plates reaches the receiving station, it undergoes transfer, travel, inclined lifting, lugcorrection, and alignment processes. After these processes, the anode plates will be arranged on the spacing chainconveyor at equal distances alternately with the cathode plates transferred by the robot. Finally, the plates are

transported as a whole by the transfer trolley to the arranging comb lifing station, ready for lifting by the spe cial grab.

 主要參數及組成  Main Parameters and Components   >>>

生產能力:≤12s/對陰陽極。 Production capacity: ≤ 12s/pair of anode and cathode plates

主要組成:受板裝置、受板移載小車、受板鏈運機、斜提升鏈運機、移載裝置、排板鏈運機、排板移載小車和排

Main components: plate receiving device, plate transfer trolley, plate chain conveyor, inclined lifting chain conveyortransfer device, plate arranging chain conveyor, plate arranging transfer trolley, and plate arranging device.

技術優勢與專利  Advantages and Patents    >>>

1、技術優勢 Advantages

1)排距后吊裝工位標高與電解槽槽面標高統一，降低了吊裝的難度，且提高了吊裝的效率;

The elevation of the lifting station after spacing is consistent with that of the refinery cell surface, reducing thedifficulty of lifting and improving the efficiency of lifting;

2)采用轉運小車，提高陽極長距離輸送靈活性，降低投資成本;

The transfer trolley is used to improve the flexibility of long-distance anode plate transportation and reduceinvestment costs;

3)陰陽極排距時采用從側面插入陰極的配置，可減少始極片變形及短路的風險，提高電解電流效率;

The cathode plates are inserted from the side, reducing the risk of deformation and short circuit of the startingsheets, and improving the eficiency of electrolysis current when arranging the distance between the cathode and anode plates;

2、專利(1項)Patents(litem)

其中實用新型專利1項，專利申請?zhí)?CN202220658779.61 utility model patent, with the patent application number: CN202220658779.6
