功能 Application  >>>

真空蒸發器組是對廢電解液采?連續真空蒸發提?溶液的濃度， 溶液進料、出料及蒸發濃縮實現連續?動化作業的?種 設備，根據?藝采?的液體蒸發模式， 可以選擇列管式蒸發器或板式蒸發器

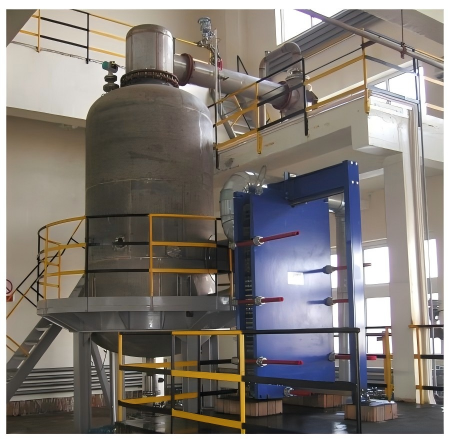

The vacuum evaporator group is a type of equipment that continuously evaporates and extracts the concentration of waste electrolyte through vacuum evaporation. The feeding, discharging, and evaporation & concentration of the

electrolyte achieve continuous dynamic operation. According to the liquid evaporation mode of the process, a tube evaporator or a plate evaporator can be selected

主要參數及組成  Main Parameters and Components

最?蒸發能?Maximum evaporating capacity： 10 m3h

真空蒸發器組主要由： 蒸發器、 分離罐、 ?噴射真空泵、 循環泵、 循環?槽、 調節閥、 管道及管路附件和電?控制系統 等組成

The vacuum evaporator consists of evaporator, separator, water-jet pump, circulating pump, circulating water tank, control valve, pipeline, fitting, electrical control system, etc.

技術優勢與專利  Advantages and Patents    >>>

1、技術優勢 Advantages

1)采?了智能型?噴射真空冷凝系統 ，使得系統具有?效節能的特點

Adopt the intelligent spray vacuum condensation system, making the system highly efficient and energy-saving

2)采?了可靠的溫度控制和密度檢測技術，提?了系統的?動化程度和運?的穩定性

Adopt reliable temperature control and density detection technology to improve the automation and stability of the system 3)使??性價?的耐腐蝕材料，提?了系統的耐腐蝕性能

Adopt cost-effective corrosion resistant materials to improve the corrosion resistance of the system

4)熱?泵采?變頻控制，根據進出?的溫差?動調節，在充分利??資源的同時達到節能的效果

The thermal pump adopts variable frequency control, which adjusts dynamically based on the temperature difference between the inlet and outlet, achieving energy-saving while fully utilizing water resources

5)實時采集溫度、真空度數據， 采?最??乘法擬合出密度公式， 解決了在密度儀表失靈的情況下仍然可以得到當前溶 液的精確密度

Real time acquisition of temperature and vacuum data, using the least square method to fit the density formula; even if the density instrument fails, the precise density of the current solution can still be obtained

               2、專利4項4 Patents

              其中發明專利3項   Among them, 3 invention patents
