功能 Application  >>>

電銅洗滌機組是?于傳統法的機、 電、液、? ? 體化的?動化銅電解?產設備 ，機組具有受板、 洗滌、 密集、 抽 棒、挑板、存儲、堆垛、打包、 輸出等功能

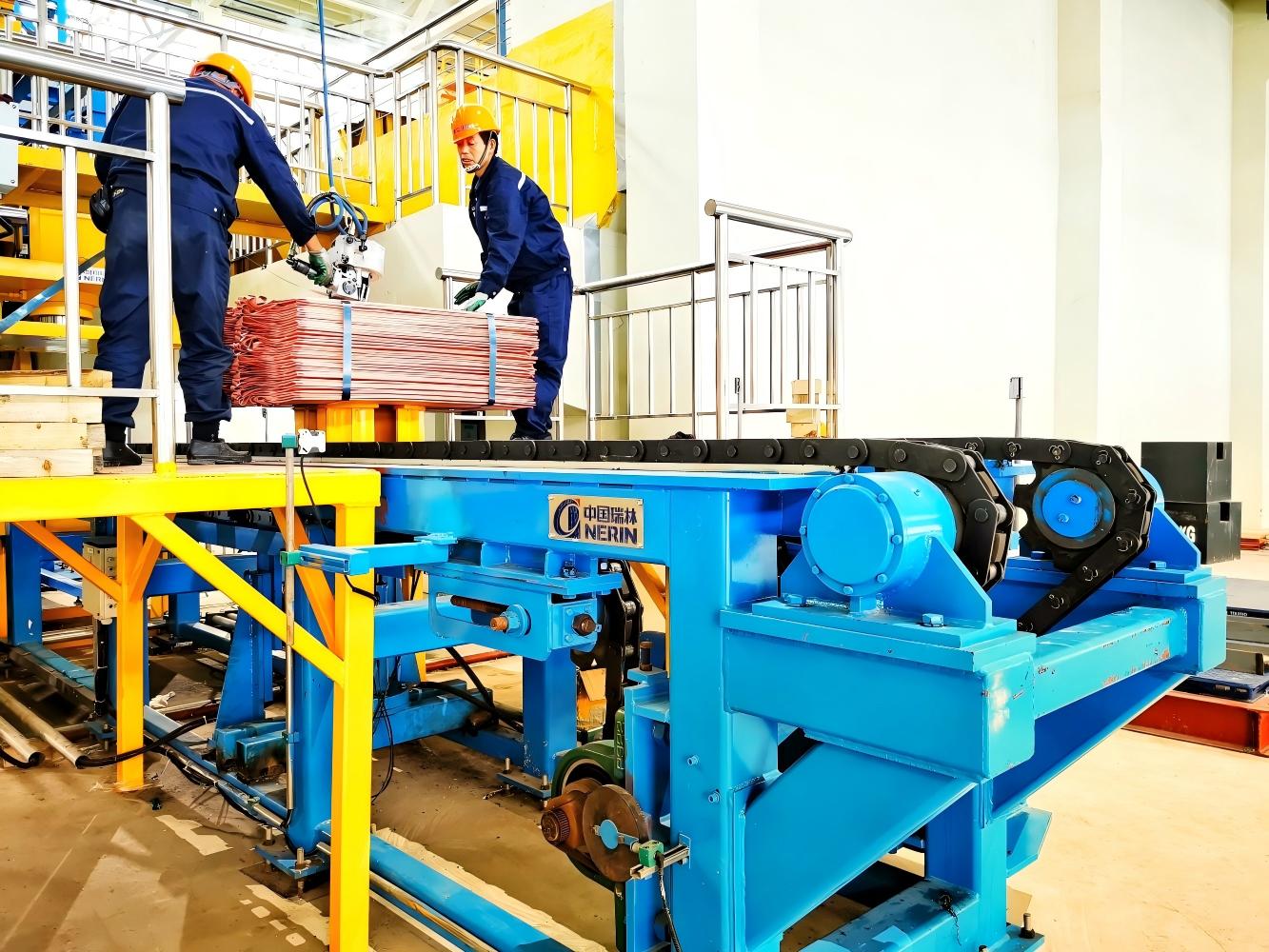

The electrolytic copper washing machine is the automated copper electrolysis production equipment that integrates mechanical, electrical, hydraulic and pneumatic systems. It has functions such as receiving plate, washing,

compacting, rod extraction, plate picking, storage, stacking, packing and output

主要參數及組成  Main Parameters and Components   >>>

最?能?Maximum capacity：500pcs/h

電銅洗滌機組主要由： 受板鏈運機、洗滌鏈運機、洗滌?噴淋系統及循環裝置、密集裝置、抽棒裝置、傾轉裝 置、輸出鏈運機、 液壓系統、 電?控制系統等組成

The electrolytic copper washing machine consists of receiving chain conveyor, washing chain conveyor, washing  water spray system and circulation device, compacting device, rod extraction device, rotating device, output chain conveyor, hydraulic system, electrical system, etc

技術優勢與專利  Advantages and Patents    >>>

1、技術優勢 Advantages

1)合理的噴淋管路設置 ， 電銅清洗?凈 ，特別是吊?處清洗潔凈

The electrolytic copper can be washed clean by reasonable spraying system, especially for the lifting lug

2)預壓四膠輥抽棒裝置不損傷導電棒且抽離快速

The prepressing for roller covered rubber rod extraction device does not damage the rod and is separated quickly 3)具備洗滌室斷?檢測功能 ， 防?因掉板導致設備停運損壞

With automatic detection of broken lugs in the washing room to prevent the equipment damage due to cathode copper plate dropping off

4)雙向預壓翻板裝置 ，不掉板 ，適應性好

With two-orientation plate prepressing and turning device, no plate dropping and good adaptability

5)可選廢板?動挑取裝置降低??處理的勞動強度

The labor intensity is reduced by the optional automatic selection of waste plate device

6)與導電棒機組、 始極?機組配套使? ，可提?勞動?產率和電解?間的?動化程度 ，充分體現?動化?產的優

越性

The conductive rod machine and starting sheet machine can be used with electrolytic copper washing machine, which can improve the labor productivity and the automation degree of the tank house. It has more advantages  than manual operation

2、專利4項 4 Patents 其中發明專利2項

Among them, 2 invention patents
