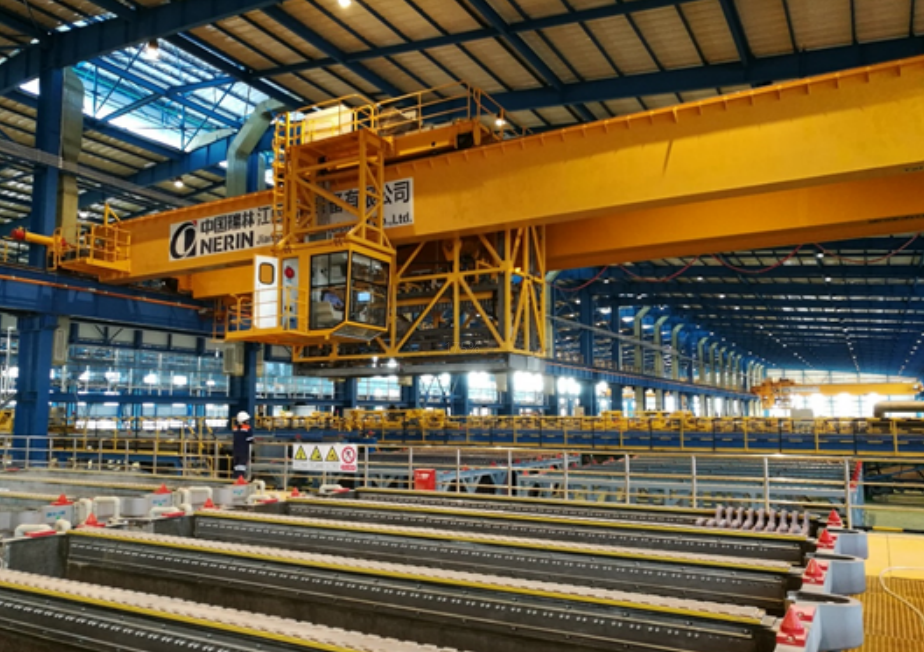

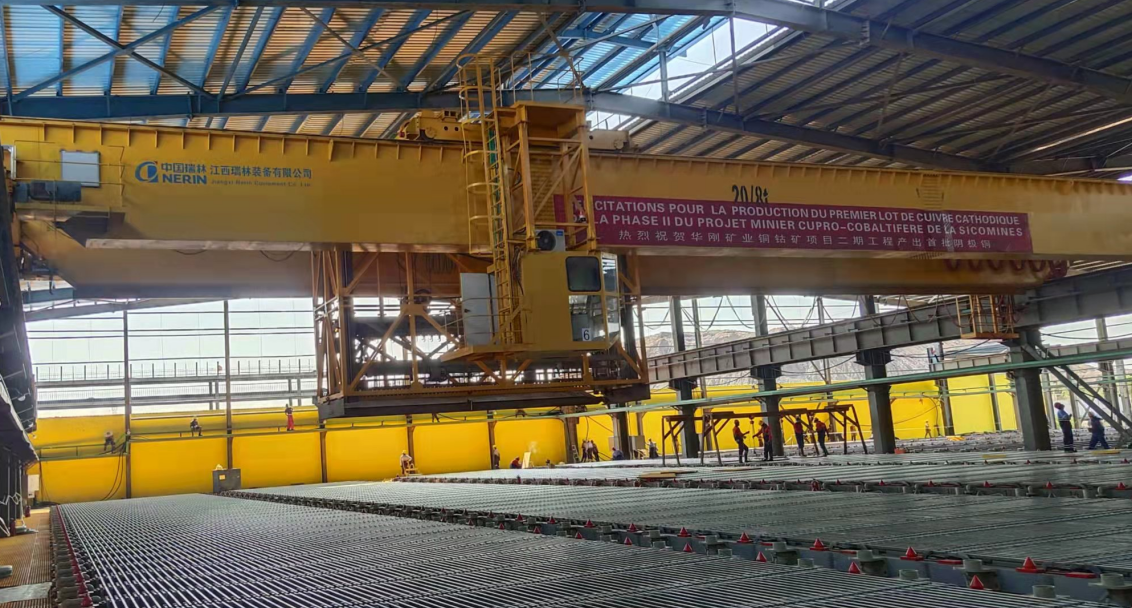

電解行車及專用吊具由一臺專用橋式起重機與一臺專用吊具組成 The refinery crane & grab consist of a bridge crane and a grab

專?橋式起重機主要包括：起重機本體、主起升機構、副起升機構、??運?機構、??運?機構等

The crane body mainly includes body, main hoist mechanism, auxiliary hoist mechanism, trolley operation mechanism, bridge operation mechanism, etc

專?吊具主要包括： 防擺框架、導向框架、陰陽極組合吊架、梳狀防擺裝置、接液盤等

The dedicated grab mainly includes anti-swing frame, guide frame, cathode & anode hanger, comb-shaped anti-swing device, drip tray, etc

技術優勢與專利  Advantages and Patents    >>>

1、技術優勢 Advantages

1)陰陽極同時起吊 ，對陽極板?專?起吊吊?要求

Simultaneous lifting for both anode and cathode, no lug requirements for anode plate

2)?動定位采?雙激光動態測距智能修正技術 ，重復定位精度可達±10mm以內

Adopt double laser dynamic range correction technology for automatic positioning, the positioning accuracy within±10mm 3)智能化的調度運?系統 ，實現??按照設定任務?動優化作業

Intelligent arrangement system which can realize the automatic optimization of the operation as per the task setting

4)吊?與吊具間采?多道絕緣， 確保系統運?安全可靠

Multi-insulation between crane and grab to ensure safe and reliable system operating

5)陰、陽極吊鉤經特殊加?和熱處理，壽命?、強度?、耐腐蝕性能好

The lifting hooks for cathode and anode have been machined and heat treated specifically, so the life span is long, strength is high and corrosion resistance is excellent

6)可以?動切換是否起吊兩端陽極板， 同時可記憶電解槽更換陽極時是否剩余2塊陽極， 以判斷吊具是否可?槽，避免故障 Able to automatically switch whether or not to lift anode plates at the two ends of the cell, it also can memorize whether     there are 2 anode plates left when the anode is charging in the eletrolytic cell. so as to determine whether the grab can     charging the cell to avoid fault

2、專利4項 4 Patents

                  其中發明專利2項   Among them, 2 invention patents
